Table of Comparison

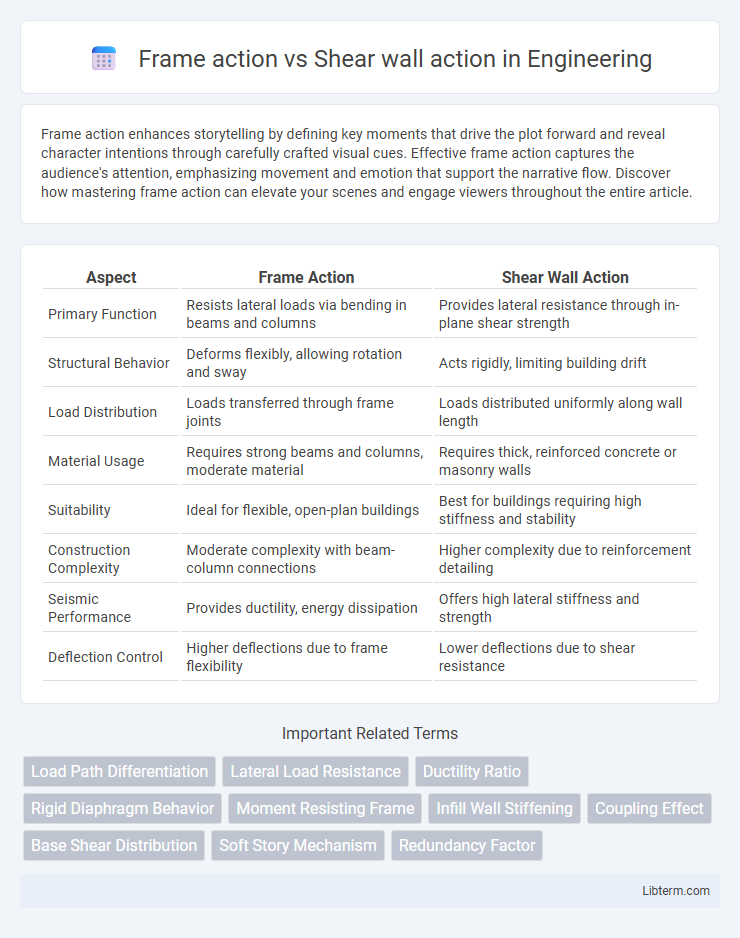

| Aspect | Frame Action | Shear Wall Action |
|---|---|---|
| Primary Function | Resists lateral loads via bending in beams and columns | Provides lateral resistance through in-plane shear strength |
| Structural Behavior | Deforms flexibly, allowing rotation and sway | Acts rigidly, limiting building drift |
| Load Distribution | Loads transferred through frame joints | Loads distributed uniformly along wall length |
| Material Usage | Requires strong beams and columns, moderate material | Requires thick, reinforced concrete or masonry walls |
| Suitability | Ideal for flexible, open-plan buildings | Best for buildings requiring high stiffness and stability |
| Construction Complexity | Moderate complexity with beam-column connections | Higher complexity due to reinforcement detailing |
| Seismic Performance | Provides ductility, energy dissipation | Offers high lateral stiffness and strength |
| Deflection Control | Higher deflections due to frame flexibility | Lower deflections due to shear resistance |
Introduction to Lateral Load Resisting Systems
Frame action and shear wall action represent two primary lateral load resisting systems in structural engineering, essential for maintaining building stability under lateral forces such as wind and seismic loads. Frame action relies on the bending and shear capacity of beams and columns interconnected to form a moment-resisting frame, allowing flexibility and energy dissipation during lateral loading. In contrast, shear wall action depends on vertical walls designed to resist lateral loads through their in-plane stiffness and strength, providing greater rigidity and reduced lateral displacement in structures.
Understanding Frame Action in Structures
Frame action in structures involves the coordinated behavior of beams and columns to resist loads through bending, shear, and axial forces, promoting flexibility and energy dissipation during events like earthquakes. In contrast, shear wall action relies primarily on vertical walls to provide lateral stiffness and strength, effectively transferring horizontal forces to the foundation. Understanding frame action is crucial for designing resilient buildings that accommodate deformation while maintaining structural integrity under dynamic loads.
Shear Wall Action: Definition and Functionality
Shear wall action refers to the structural behavior where vertical walls resist lateral forces, such as wind and seismic loads, by transferring these forces to the foundation through shear stresses. These walls enhance a building's rigidity and stability by providing continuous vertical support that prevents deformation and lateral displacement. Unlike frame action, where beams and columns primarily resist loads, shear walls act as significant vertical diaphragms, improving overall structural integrity and reducing sway.
Key Differences: Frame Action vs Shear Wall Action
Frame action relies on beams and columns to resist lateral forces through bending and flexural action, allowing significant flexibility and deformation under loads. Shear wall action utilizes vertical walls to transfer lateral loads primarily by shear resistance, providing higher stiffness and limiting lateral displacement. Frame action is typically used for moderate seismic forces and architectural flexibility, whereas shear walls are essential for high seismic regions demanding greater structural rigidity and lateral load capacity.
Structural Behavior under Lateral Loads
Frame action primarily resists lateral loads through bending and shear in beams and columns, allowing for ductile deformation and energy dissipation during seismic events. Shear wall action relies on vertical walls to provide stiffness and strength, effectively transferring lateral forces to the foundation with minimal deformation. The combination of frame and shear wall action enhances overall structural stability by balancing flexibility and rigidity under lateral loading conditions.
Advantages of Frame Action
Frame action provides superior flexibility in building design, allowing for efficient distribution of lateral loads through beams and columns without excessive rigidity. This system enhances energy dissipation during seismic events, reducing structural damage by permitting controlled deformation. Frame action also facilitates larger openings for architectural aesthetics and functional use, unlike shear wall action which restricts design due to its stiffness.
Benefits of Shear Wall Systems
Shear wall systems provide superior lateral stiffness and strength, significantly enhancing a building's resistance to seismic and wind forces. They efficiently transfer horizontal loads to the foundation, reducing structural drift and improving occupant safety during earthquakes. Their load-bearing capacity minimizes the need for additional bracing, allowing for more open floor plans and architectural flexibility.
Application Criteria: Frame Action vs Shear Wall Action
Frame action is best suited for buildings requiring flexible layouts and large open spaces, such as commercial offices and residential towers, offering excellent resistance to lateral loads through beam-column connections. Shear wall action excels in structures needing high lateral stiffness and strength, especially in seismic-prone or high-wind areas, commonly applied in high-rise buildings and parking garages to efficiently transfer lateral forces to foundations. Selection criteria depend on factors like building height, lateral load demands, architectural requirements, and material availability, with frame action preferred for flexibility and shear walls for rigidity and strength.
Comparative Analysis: Performance and Cost
Frame action systems provide flexibility and ductility, making them ideal for seismic resilience, while shear wall action offers superior lateral stiffness and load distribution, enhancing overall building stability. In terms of cost, frame action typically involves higher initial material and labor expenses due to complex connections and framing requirements, whereas shear wall systems reduce construction time and cost through simpler, repetitive structural elements. Performance-wise, shear walls excel in controlling lateral deformations and vibrations, whereas frames allow better architectural freedom and open spaces, influencing the choice based on project priorities and seismic conditions.
Conclusion: Selecting the Optimal Structural System
Selecting the optimal structural system depends on project requirements such as load distribution, architectural flexibility, and seismic considerations. Frame action offers greater design versatility and adaptability for irregular layouts, while shear wall action provides superior stiffness and lateral load resistance in high seismic zones. Balancing these factors ensures the chosen system maximizes structural performance, safety, and cost efficiency.
