libterm.com The neutral axis is a critical concept in structural engineering, representing the line within a beam or structural member where the material experiences zero stress during bending. Understanding the position of the neutral axis is essential for analyzing bending moments and ensuring the structural integrity of beams under load. Explore the article to learn how the neutral axis impacts your designs and structural safety.
Table of Comparison
| Aspect | Neutral Axis | Centroidal Axis |
|---|---|---|
| Definition | The axis within a beam or cross-section where bending stress is zero during bending. | The axis passing through the centroid (geometric center) of the cross-section. |
| Location | Varies with applied loading and bending moment, but often coincides with the centroidal axis in symmetric sections. | Fixed based on geometry, independent of loading conditions. |
| Purpose | Determines stress distribution under bending; zero bending stress along this axis. | Reference for calculating moments of inertia and centroidal properties. |
| Stress Characteristics | Stress is zero at the neutral axis; tension and compression occur on opposite sides. | No direct stress implication; purely geometric reference. |
| Relevance | Essential in structural analysis for bending stress calculations. | Key in determining section properties like moment of inertia. |
Introduction to Neutral Axis and Centroidal Axis
The neutral axis in beam bending is the line within the cross-section where the fibers experience zero longitudinal stress, separating the tension and compression zones. The centroidal axis passes through the centroid of the cross-section, representing the geometric center of the area, and is crucial for calculating moments of inertia. Understanding the relationship between the neutral axis and centroidal axis helps predict material behavior under load and is essential for structural analysis and design.
Defining the Neutral Axis
The neutral axis is a critical concept in structural engineering, defined as the line within a beam or structural member where the material experiences zero longitudinal stress during bending. It passes through the cross-section where tensile and compressive stresses balance out, distinguished from the centroidal axis that represents the geometric center of the section. Understanding the position of the neutral axis is essential for accurately analyzing stress distribution and ensuring structural integrity under load conditions.
Understanding the Centroidal Axis
The centroidal axis is the line that passes through the centroid of a cross-section, representing the geometric center where the area is evenly distributed on both sides. Unlike the neutral axis, which shifts under bending to represent zero stress, the centroidal axis remains fixed as a reference for calculating moments of inertia and stresses in structural analysis. Understanding the centroidal axis is fundamental for determining the balance point in beams and optimizing design for load distribution.
Key Differences Between Neutral Axis and Centroidal Axis
The neutral axis in a beam subjected to bending is the line within the cross-section where the fibers experience zero stress, whereas the centroidal axis passes through the geometric center of the cross-section. The neutral axis shifts based on the bending moment and the shape of the section, while the centroidal axis remains fixed as the principal axis of symmetry. Understanding the distinction is critical for accurately calculating bending stresses and designing structural elements.
Importance in Structural Engineering
The neutral axis in structural engineering is crucial as it represents the line within a beam or structural member where the stress is zero during bending, directly influencing the flexural stress distribution and structural integrity. The centroidal axis, being the geometric center of the cross-section, serves as the reference for calculating the moment of inertia, which determines the member's resistance to bending and deflection. Understanding the relationship between the neutral axis and centroidal axis is essential for accurate design and analysis of beams to ensure safety and optimal material use.
How to Locate the Neutral Axis
The neutral axis in a beam's cross-section is located by finding the line where the bending stress is zero, which coincides with the centroidal axis in symmetric, homogeneous sections. To locate the neutral axis, calculate the centroid of the cross-sectional area by balancing moments of each segment around a reference axis, ensuring the sum of first moments equals zero. For composite or unsymmetrical sections, use the transformed section method to find an equivalent centroid, aligning the neutral axis with this centroidal axis.
Methods for Finding the Centroidal Axis
The centroidal axis is the line passing through the centroid of a cross-section, where bending stresses are zero. Methods for finding the centroidal axis include geometric decomposition, where the cross-section is divided into simpler shapes with known centroids, and the use of coordinate geometry by calculating the weighted average of coordinates of all area elements. Another common approach involves applying the parallel axis theorem and integrating the area moments to locate the precise centroidal axis for asymmetrical or composite sections.
Practical Applications in Beam Design
The neutral axis in beam design represents the line within the cross-section where the bending stress is zero, essential for analyzing flexural stresses and preventing structural failure. The centroidal axis, often coinciding with the neutral axis in symmetric sections, serves as the reference line for calculating moment of inertia, critical for determining beam stiffness and deflection under loads. Understanding the distinction between these axes allows engineers to accurately design beams that optimize material usage while ensuring safety and performance in practical structural applications.
Common Misconceptions and Errors
The neutral axis and centroidal axis are often mistakenly considered identical, but the neutral axis shifts under bending stress, whereas the centroidal axis is a fixed geometric property. A common error is assuming the neutral axis always coincides with the centroidal axis, overlooking material nonlinearity and asymmetric loading conditions that cause deviation. Misinterpreting this distinction leads to inaccurate stress analysis and structural design flaws.
Summary and Key Takeaways
The neutral axis is the line within a beam or structural member where the tensile and compressive stresses are zero during bending, whereas the centroidal axis passes through the geometric center of a cross-section. The neutral axis shifts depending on the material properties and loading conditions, while the centroidal axis remains fixed based on geometry alone. Understanding the distinction is crucial for accurate stress analysis and structural design, ensuring safety and performance in engineering applications.

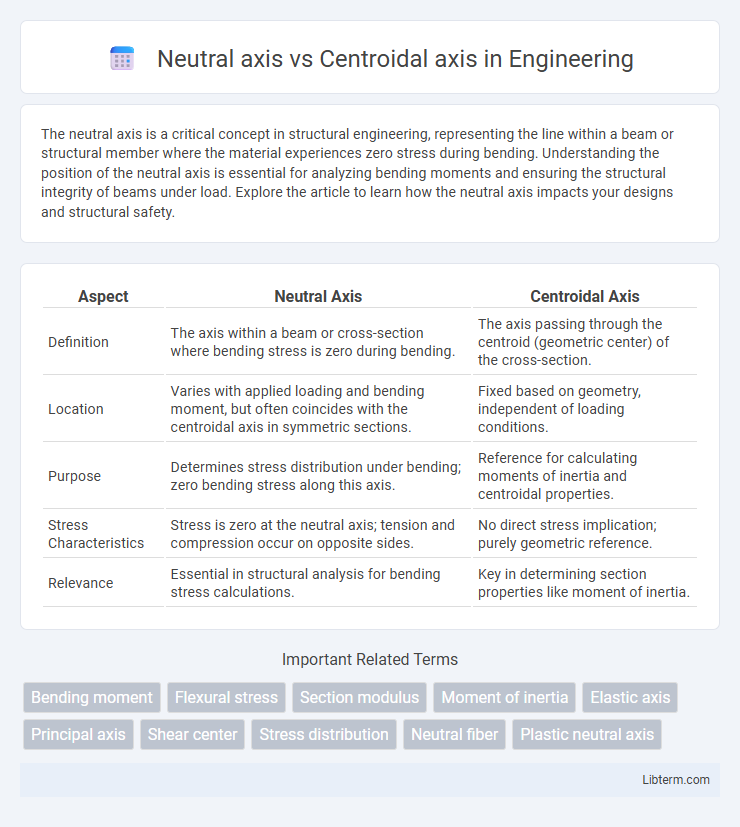

Neutral axis Infographic
