libterm.com The Coffin-Manson curve illustrates the relationship between plastic strain amplitude and fatigue life in materials subjected to cyclic loading, highlighting how increased strain leads to reduced cycles to failure. This curve is essential for predicting material durability in low-cycle fatigue scenarios, especially in metals and alloys used in engineering applications. Discover how understanding the Coffin-Manson curve can help you optimize design and extend component lifespan by exploring the detailed mechanics in the rest of this article.
Table of Comparison
| Aspect | Coffin-Manson Curve | S-N Curve |
|---|---|---|
| Purpose | Predicts low-cycle fatigue life based on plastic strain amplitude | Predicts high-cycle fatigue life based on stress amplitude |
| Application Range | Low-cycle fatigue (high strain, low cycles) | High-cycle fatigue (low stress, high cycles) |
| Input Parameter | Plastic strain amplitude (De_p/2) | Stress amplitude (s_a) |
| Output | Number of cycles to failure (N_f) | Number of cycles to failure (N_f) |
| Mathematical Form | De_p/2 = e'f (2N_f)^c (strain-life equation) | s_a = s'f (2N_f)^b (stress-life equation) |
| Fatigue Mechanism | Plastic strain accumulation and crack initiation | Elastic stress range causing crack growth |
| Typical Material Data | Fatigue ductility coefficient (e'f), fatigue ductility exponent (c) | Fatigue strength coefficient (s'f), fatigue strength exponent (b) |
| Curve Shape | Strain vs. cycles, typically downward sloping on log-log scale | Stress vs. cycles, typically downward sloping on log-log scale |
| Use Case | Design for materials under cyclic plastic deformation | Design for components under cyclic elastic stress |
Introduction to Fatigue Life Prediction
The Coffin-Manson curve and S-N curve are fundamental tools in fatigue life prediction, representing different aspects of material behavior under cyclic loading. The Coffin-Manson curve emphasizes low-cycle fatigue by correlating plastic strain amplitude to fatigue life, crucial for predicting failure in components experiencing high strain levels. In contrast, the S-N curve focuses on high-cycle fatigue, plotting stress amplitude against the number of cycles to failure, widely used for assessing fatigue life in structures under elastic deformation.
Overview of the Coffin-Manson Curve
The Coffin-Manson curve models low-cycle fatigue by relating plastic strain amplitude to fatigue life, emphasizing material behavior under high strain conditions. This curve is critical for predicting fatigue failure in components subjected to cyclic plastic deformation, where the number of cycles to failure is typically less than 10^4 to 10^5. Unlike the S-N curve, which addresses high-cycle fatigue with stress amplitude versus cycles, the Coffin-Manson equation captures the strain-life relationship, making it essential for fatigue analysis in ductile metals.
Understanding the S-N Curve
The S-N curve, or stress-life curve, represents the relationship between cyclic stress amplitude and the number of cycles to failure for a material, providing essential data for fatigue analysis. It helps engineers predict the lifespan of components under varying stress levels by plotting stress (S) against the logarithm of the number of cycles (N). Understanding the S-N curve is crucial for designing parts resistant to fatigue and establishing safe operating limits in mechanical systems.
Key Differences Between Coffin-Manson and S-N Curves
The Coffin-Manson curve characterizes low-cycle fatigue behavior by describing strain-life relationships, focusing on plastic strain amplitude and fatigue life, while the S-N curve emphasizes high-cycle fatigue by correlating stress amplitude to the number of cycles to failure. The Coffin-Manson approach accounts for cyclic plastic deformation and is used for materials experiencing significant strain levels, whereas the S-N curve is applicable to elastic stress levels and provides a stress-based fatigue limit. Key differences include the parameter type (strain vs. stress), fatigue regime (low-cycle vs. high-cycle), and material response focus (plastic deformation vs. elastic behavior).
Material Behavior: Low Cycle vs High Cycle Fatigue
The Coffin-Manson curve characterizes material behavior under low cycle fatigue, where plastic deformation dominates and fatigue life is governed by strain amplitude. In contrast, the S-N curve describes high cycle fatigue, focusing on elastic stress fluctuations and the number of cycles to failure at lower strain levels. Understanding these distinctions is crucial for predicting fatigue life in components subjected to varying load amplitudes and cycle counts.
Application Areas for Each Curve
The Coffin-Manson curve is primarily applied in low-cycle fatigue analysis of materials subjected to plastic strain, commonly used in components experiencing high strain, such as turbine blades, automotive parts, and microelectronic solder joints. The S-N curve finds extensive application in high-cycle fatigue scenarios where materials undergo elastic strain, making it essential for the design and life prediction of structural components like bridges, aircraft wings, and rotating machinery. Both curves support fatigue life assessment but target different strain regimes, optimizing material durability in engineering and manufacturing industries.
Strain-Controlled vs Stress-Controlled Fatigue Analysis
The Coffin-Manson curve characterizes strain-controlled fatigue by relating plastic strain amplitude to fatigue life, emphasizing low-cycle fatigue dominated by plastic deformation. In contrast, the S-N curve represents stress-controlled fatigue analysis, correlating stress amplitude with the number of cycles to failure and is typically used for high-cycle fatigue where elastic behavior prevails. Strain-controlled testing captures the cyclic strain response, crucial for materials undergoing significant plasticity, while stress-controlled testing evaluates endurance under fluctuating stress levels with primarily elastic strains.
Data Requirements and Testing Procedures
The Coffin-Manson curve requires detailed low-cycle fatigue data derived from tests involving controlled strain amplitudes, typically conducted through strain-controlled fatigue testing to capture material behavior under plastic deformation. In contrast, the S-N curve relies on high-cycle fatigue data obtained from stress-controlled cyclic loading tests, focusing on elastic strain regions and endurance limits. Both methods demand precise measurement of cycles to failure, but Coffin-Manson tests emphasize strain measurement accuracy while S-N tests prioritize stress level consistency and number of cycles to failure across a broader range.
Limitations and Challenges of Each Approach
The Coffin-Manson curve primarily addresses low-cycle fatigue by correlating plastic strain amplitude to fatigue life but struggles with accurately predicting high-cycle fatigue due to its limited strain-life focus. The S-N curve, centered on stress amplitude versus cycles to failure, effectively models high-cycle fatigue but lacks precision in low-cycle scenarios involving significant plastic deformation. Both approaches face challenges in accounting for complex loading conditions and material heterogeneity, necessitating integrated models for comprehensive fatigue life prediction.
Selecting the Right Curve for Engineering Design
Selecting the right curve for engineering design hinges on understanding the Coffin-Manson curve's focus on low-cycle fatigue and plastic strain versus the S-N curve's emphasis on high-cycle fatigue and stress-life relationships. The Coffin-Manson curve provides critical insights for components subjected to significant strain amplitudes and rapid failure cycles, essential for materials with limited ductility. In contrast, the S-N curve is suited for durability analysis under cyclic loading, offering valuable data for predicting endurance limits and fatigue life in metallic structures.

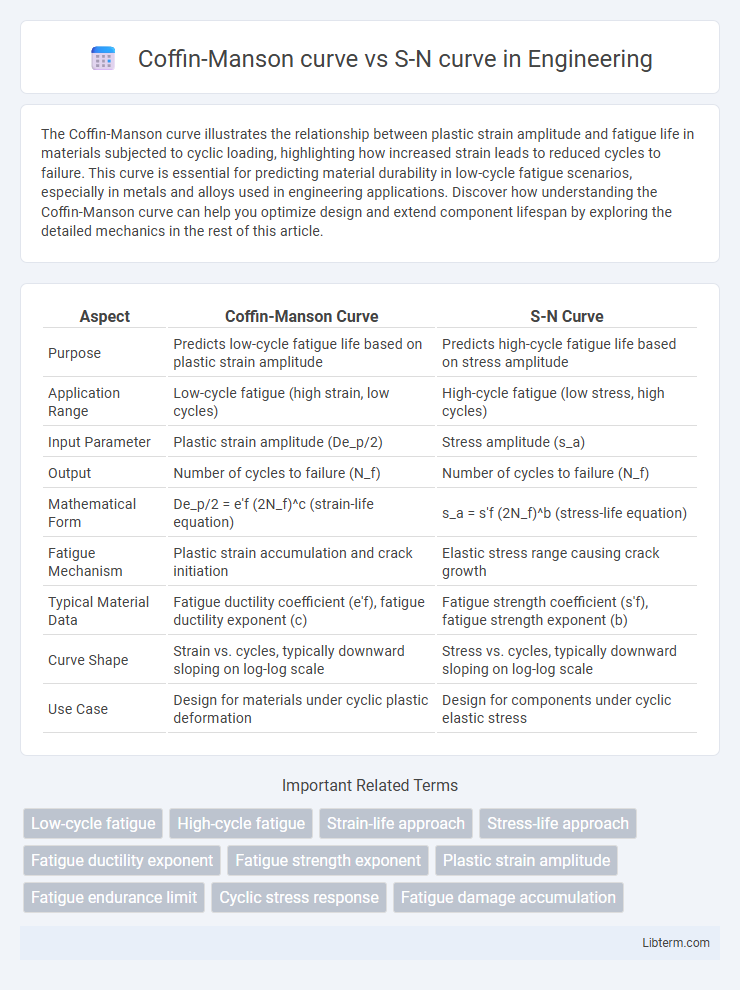

Coffin-Manson curve Infographic
