libterm.com Transonic flow occurs when an object moves through air at speeds close to the speed of sound, typically between Mach 0.8 and 1.2, causing a mixture of subsonic and supersonic airflow around it. This complex flow regime leads to shock waves and significant changes in pressure, impacting aerodynamic performance and stability. Explore the rest of the article to understand how transonic flow affects your aircraft's behavior and design considerations.
Table of Comparison
| Aspect | Transonic Flow | Supersonic Flow |
|---|---|---|
| Mach Number Range | Approximately 0.8 to 1.2 | Greater than 1.2 |
| Flow Characteristics | Mixed subsonic and supersonic regions, shock waves form | Dominantly supersonic flow with shock waves and expansion fans |
| Shock Waves | Localized, weak shock waves causing flow instability | Strong, well-defined shock waves |
| Pressure Changes | Rapid pressure rise near Mach 1 | Significant pressure drops across shock waves |
| Aerodynamic Effects | Drag rise due to wave drag | Increased wave drag and potential flow separation |
| Applications | Commercial jets near cruise speed | Military aircraft, supersonic missiles, space vehicles |
| Flow Regime | Transition zone between subsonic and supersonic | Fully supersonic regime |
Introduction to Compressible Flows
Transonic flow occurs when airflow velocity is near the speed of sound, typically between Mach 0.8 and 1.2, causing significant changes in pressure and density that require compressible flow analysis. Supersonic flow exists at speeds greater than Mach 1, characterized by shock waves and rapid changes in thermodynamic properties due to air compressibility. Understanding compressible flows is essential for accurate prediction of aerodynamic forces and thermal effects in high-speed aircraft and propulsion systems.
Defining Transonic and Supersonic Flow Regimes
Transonic flow occurs when the airflow velocity approaches the speed of sound, typically between Mach 0.8 and Mach 1.2, characterized by the coexistence of subsonic and supersonic regions around an object. Supersonic flow exists at speeds exceeding Mach 1.0, where the entire airflow moves faster than sound, resulting in shock waves and significant changes in pressure and density. Understanding the distinct flow regimes is crucial for aerospace engineering to optimize aircraft performance and control at varying speeds.
Key Differences in Mach Number Ranges
Transonic flow occurs at Mach numbers ranging from approximately 0.8 to 1.2, where airflow transitions from subsonic to supersonic speeds and shock waves begin to form. Supersonic flow is characterized by Mach numbers greater than 1.2, with airflow fully exceeding the speed of sound and distinct shock waves present throughout the flow field. The critical Mach number marks the onset of transonic flow, while the lower boundary of supersonic flow signifies the complete dominance of compressibility effects.
Physical Characteristics of Transonic Flow
Transonic flow occurs when airflow velocity approaches the speed of sound, typically between Mach 0.8 and 1.2, characterized by mixed subsonic and supersonic regions with localized shock waves. The physical characteristics include abrupt pressure and temperature changes, flow separation, and significant variations in aerodynamic forces due to shock-boundary layer interactions. Unlike supersonic flow, which is entirely above Mach 1 and exhibits stable shock structures, transonic flow features unsteady and complex shock wave patterns affecting aircraft performance and control.
Physical Characteristics of Supersonic Flow
Supersonic flow is characterized by fluid velocity exceeding the speed of sound, resulting in shock waves and abrupt changes in pressure, temperature, and density. Unlike transonic flow, which occurs near Mach 1 with mixed subsonic and supersonic regions, supersonic flow exhibits distinct constant supersonic regimes separated by shock fronts. These shock waves cause irreversible entropy increases and are critical in aerodynamic design for supersonic aircraft and missiles.
Shock Waves: Formation and Effects
Shock waves form in transonic flow as airflow accelerates to and briefly exceeds the speed of sound around an object, causing localized pressure spikes and flow separation. In supersonic flow, shock waves are stronger and more stable, appearing as oblique or normal shocks that result in significant increases in pressure, temperature, and density, dramatically affecting aircraft drag and control. These shock waves create rapid changes in airflow properties, influencing aerodynamic performance, structural integrity, and propulsion efficiency.
Aerodynamic Challenges in Transonic Speeds
Transonic flow, occurring near the speed of sound (Mach 0.8 to 1.2), presents significant aerodynamic challenges such as shock wave formation, boundary layer separation, and rapid changes in pressure distribution, which can lead to increased drag and loss of lift. Supersonic flow, beyond Mach 1, involves steady shock waves and expansion fans, allowing more predictable aerodynamic behavior, but transonic speeds exhibit a complex mix of subsonic and supersonic airflow regions causing control difficulties. Managing the aerodynamic instability in transonic regimes requires advanced airfoil designs and variable geometry to minimize adverse effects on aircraft performance and stability.
Design Considerations for Supersonic Vehicles
Design considerations for supersonic vehicles prioritize aerodynamic efficiency to minimize shockwave formation and drag at speeds above Mach 1. Engineers optimize wing shapes using slender, tapered designs and incorporate area ruling to reduce wave drag and ensure stability during supersonic flight. Material selection focuses on heat-resistant composites to withstand high thermal loads caused by aerodynamic heating at supersonic velocities.
Practical Applications in Aerospace Engineering
Transonic flow occurs near the speed of sound, typically between Mach 0.8 and 1.2, and is critical in designing commercial airliners to optimize fuel efficiency and reduce drag during cruise. Supersonic flow, exceeding Mach 1, is essential for military aircraft and space vehicles, enabling high-speed interception and atmospheric re-entry with specialized aerodynamic shapes to manage shock waves and thermal loads. Aerospace engineers leverage computational fluid dynamics (CFD) and wind tunnel testing to address complex flow behaviors and improve performance across these speed regimes.
Comparative Summary: Transonic vs Supersonic Flow
Transonic flow occurs at Mach numbers ranging approximately from 0.8 to 1.2, characterized by mixed subsonic and supersonic regions with shock waves forming intermittently on the aircraft surfaces. Supersonic flow exists at Mach numbers greater than 1.2, featuring fully supersonic airflow with strong shock waves and significant changes in pressure, temperature, and density. The primary difference lies in shock wave behavior and aerodynamic forces, where transonic flow experiences increased drag due to shock-induced separation, while supersonic flow stabilizes at higher Mach numbers with distinct shock patterns and reduced wave drag.

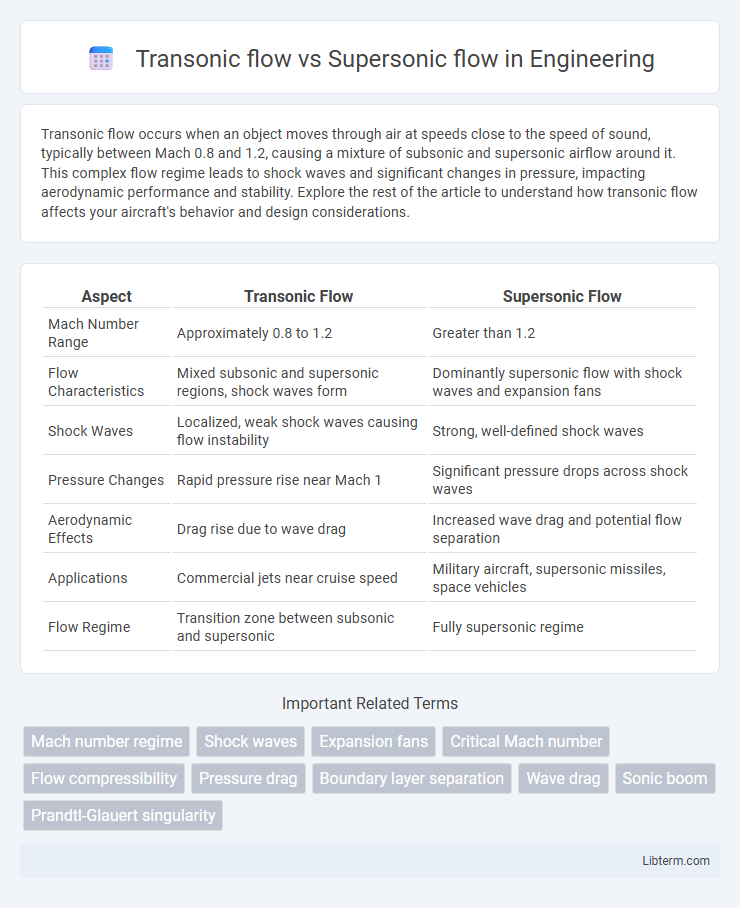

Transonic flow Infographic
