libterm.com The outrigger system significantly enhances the lateral stability of tall buildings by connecting the core structure to external columns, reducing sway and improving structural performance under wind and seismic loads. This method redistributes forces more efficiently, allowing for lighter construction materials and increased architectural flexibility. Discover how the outrigger system can optimize your building's design by reading the rest of this article.
Table of Comparison
| Feature | Outrigger System | Braced Frame |
|---|---|---|
| Primary Function | Enhances lateral stiffness by linking core to perimeter columns | Provides lateral stability through diagonal bracing |
| Typical Application | High-rise buildings with central core | Mid- to high-rise buildings requiring lateral load resistance |
| Structural Components | Outriggers, belt trusses, core, perimeter columns | Diagonal braces, beams, columns |
| Effect on Building Stiffness | Significantly increases overall building stiffness | Moderate increase in lateral stiffness |
| Architectural Impact | Minimal external impact; mostly internal elements | Visible external bracing affects facade design |
| Load Transfer Mechanism | Core transfers moment to perimeter columns via outriggers | Diagonal braces transfer axial loads to columns and foundations |
| Construction Complexity | Higher complexity due to integration with core and outrigger | Relatively simpler construction with repetitive bracing elements |
| Cost Implications | Higher initial cost; optimized for tall structures | Lower cost; suitable for moderate heights |
| Seismic Performance | Excellent energy dissipation and stiffness | Good seismic resistance with controlled deformation |
Introduction to High-Rise Structural Systems
The outrigger system enhances high-rise structural stability by connecting the central core to perimeter columns, effectively distributing lateral loads and increasing stiffness. Braced frames rely on diagonal steel members forming triangulated systems that resist lateral forces through tension and compression, providing flexibility in architectural design. Both systems are critical in optimizing structural performance and ensuring safety in tall buildings subjected to wind and seismic loads.
Overview of Outrigger Systems
Outrigger systems enhance high-rise building stability by connecting the core to perimeter columns through stiff horizontal trusses or beams, significantly reducing lateral deformation under wind or seismic loads. These systems distribute bending moments more efficiently, allowing for slimmer structural cores and increased rentable floor space compared to traditional braced frames. The integration of outriggers improves overall stiffness and strength, optimizing the structural performance of tall buildings while maintaining architectural flexibility.
Basics of Braced Frame Structures
Braced frame structures use diagonal steel braces to enhance lateral stability by transferring wind and seismic loads directly to the foundation, providing efficient resistance against horizontal forces. These frames are designed to improve building rigidity and reduce sway, making them suitable for mid-rise to high-rise buildings in seismic and wind-prone areas. The bracing can be configured in various patterns such as X-braces, K-braces, or chevron braces, each optimizing structural performance and load distribution.
Key Differences Between Outrigger and Braced Frame Systems
Outrigger systems transfer lateral loads from the core to perimeter columns using stiff horizontal structures connected to outrigger trusses or beams, enhancing building stiffness and reducing drift. Braced frame systems stabilize structures by integrating diagonal braces within the frame to resist lateral forces directly, often resulting in more concentrated load paths. The outrigger system is typically favored in tall buildings for its efficiency in minimizing sway, while braced frames are common in mid-rise construction due to simpler installation and cost-effectiveness.
Structural Efficiency and Performance Comparison
Outrigger systems enhance structural efficiency by linking the building core to perimeter columns, significantly improving lateral stiffness and reducing drift in tall buildings. Braced frames provide effective load distribution through diagonal members, excelling in resisting lateral forces but often resulting in increased material usage compared to outrigger systems. Performance comparison reveals outrigger systems offer superior height-to-stiffness ratios, while braced frames provide more redundancy and adaptability in seismic regions.
Material Usage and Cost Implications
Outrigger systems typically use high-strength steel or concrete for large, rigid cores and extending outriggers, leading to material concentrations mainly in core areas, which can optimize material distribution but increase initial costs. Braced frames utilize steel or reinforced concrete braces distributed throughout the structure, often requiring more uniform material usage yet allowing for potentially lower material costs due to simpler fabrication and erection. Cost implications favor outrigger systems in high-rise buildings where material efficiency reduces overall weight and foundation expenses, while braced frames may offer cost advantages in mid-rise constructions due to simpler detailing and faster construction times.
Seismic and Wind Resistance Capabilities
Outrigger systems enhance a building's stiffness and lateral load resistance by connecting the core to perimeter columns, significantly improving seismic and wind performance in tall structures. Braced frames provide lateral stability through diagonal bracing elements, effectively dissipating seismic energy and resisting wind-induced forces in both mid-rise and high-rise buildings. The outrigger system is preferred for super-tall buildings due to its superior ability to reduce lateral drift, while braced frames offer cost-effective seismic resilience and wind resistance in a wide range of structural heights.
Architectural Flexibility and Design Impact
The outrigger system enhances architectural flexibility by allowing taller buildings with slender profiles, optimizing core dimensions to maximize usable floor space and enabling more open, column-free interiors. In contrast, braced frames provide robust lateral stability but often require diagonal braces that can disrupt open floor plans and limit facade treatments. The choice between these systems significantly impacts design aesthetics, structural efficiency, and spatial configuration in high-rise architecture.
Construction Complexity and Timeline
Outrigger systems involve complex integration of stiff outrigger beams and belt trusses connecting core walls to perimeter columns, requiring precise alignment and specialized labor, which can extend construction timelines. Braced frames use diagonal braces integrated directly into the structural frame, typically resulting in simpler erection processes and faster assembly compared to outriggers. Project timelines for outrigger systems often exceed those of braced frames due to the increased coordination needed for load transfer and detailing.
Suitability for Various Building Types
The outrigger system is highly suitable for supertall skyscrapers and high-rise buildings requiring enhanced lateral stiffness and reduced sway, making it ideal for structures with large open interior spaces. Braced frames excel in mid-rise and industrial buildings where cost-effectiveness, ease of construction, and efficient load transfer are priorities, particularly in seismic or wind-prone regions. For complex building geometries and mixed-use developments, a hybrid approach combining outriggers and braced frames offers optimized structural performance and architectural flexibility.

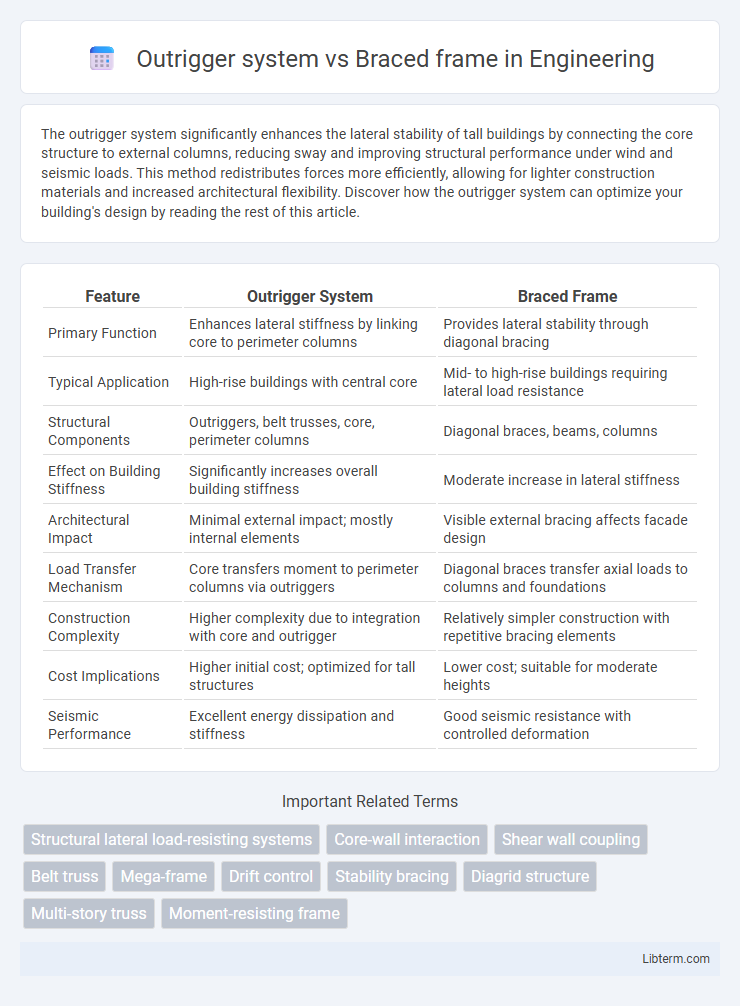

Outrigger system Infographic
